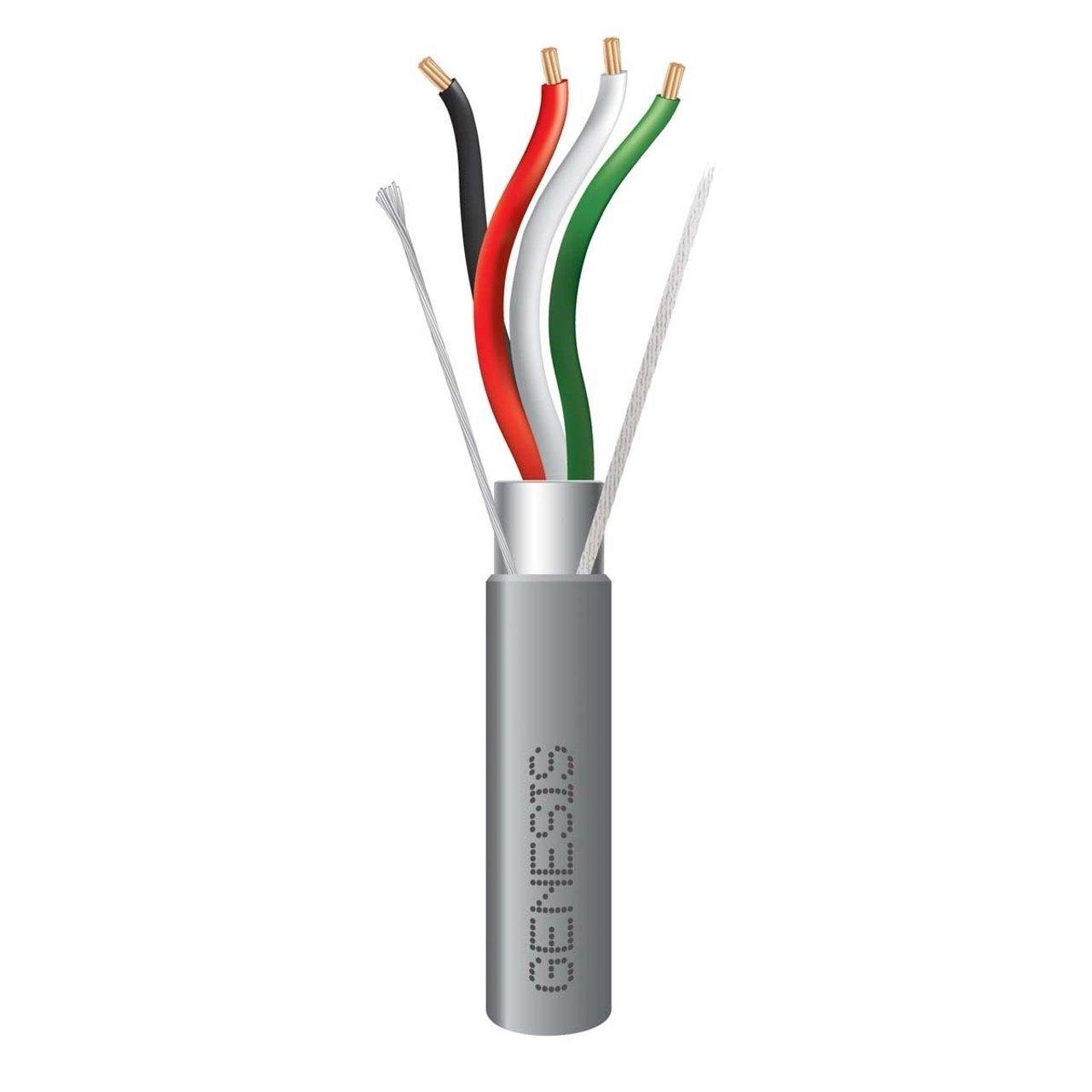

TS184 - Shielded Communication Cable

Picture of TS184 - Shielded Communication Cable Picture of TS184 - Shielded Communication Cable
Picture of TS184 - Shielded Communication Cable Picture of TS184 - Shielded Communication Cable

TS184 - Shielded Communication Cable

Item Code: 260708
Manufacturer Southwire Company
Manufacturer Ref TS184
Minimum order quantity 1000
Call for Availability
Compare

Description

Shielded Communication Cable; Type CMR/CL3R (UL); Voltage Rating 300 V; Number of Conductors 4; Conductor Size 18 AWG Stranded; Conductor Material Bare Copper; Drain Wire Material Tinned Copper; Drain Wire Size 24 AWG; Color Code Black, Red, White, Green; Insulation Material PVC; Jacket Material PVC; Jacket Color Gray; Shielding Type Aluminum Mylar; Outer Diameter 0.193 Inch; Length 1000 Ft; Temperature Rating -20 to 60 Deg C; Application Communication, Intercom/P.A. System, Nurse Call, Power Limited Circuit, Remote Control, Security System, Signaling, Sound/Audio; Approval UL 13, UL 444; ROHS Compliant; Applicable Standard NEC 725, NEC 800; Stranding 7/0.0152; Insulation Thickness 0.008 Inch; Jacket Thickness 0.017 Inch; Insulated Conductor Diameter 0.062 Inch; Packaging Type Reel

Specifications

Weight

29.94lb

Height

7.25mm

Width

11.75mm

Length

11.75mm

AD Application

For General Purpose and Security Systems

AD Brand (Description)

Genesis Cable

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

COAX CBL - RISER RATED REEL 300V 4 18AWG

AD Item Features 01

Cable Rating - Riser, FT4

AD Item Features 02

Cable Listing - CL3R, FPLR, CMR, FT4, Sunlight Resistant

AD Item Features 03

Conductor Material - Bare Copper

AD Item Features 04

Shielding - Yes

AD Item Features 05

Shielding Type - Overall Foil

AD Item Features 06

Rip Cord - Yes

AD Item Features 07

67% Velocity of Propagation

AD Item Features 08

1 Package Quantity

AD Item Features 09

Cable Packaging - Reel

AD Item Features 10

11.75 in Package Length

AD Item Features 11

11.75 in Package Width

AD Item Features 12

7.25 in Package Height

AD Item Features 13

30.8 lb Product Weight

AD Manufacturer (Description)

Southwire Company

AD Package Height

7.2500

AD Package Height UOM

IN

AD Package Length

11.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

29.9400

AD Package Weight UOM

LB

AD Package Width

11.7500

AD Package Width UOM

IN

Brand

Genesis

Category

CU Wiring - Bare - Soft Drawn - STR

Spec 1 Attribute

Capacitance

Spec 1 Attribute UOM

pF/ft

Spec 1 Attribute Value

36.3

Spec 10 Attribute

Packaging Type

Spec 10 Attribute Value

Reel

Spec 11 Attribute

Series

Spec 11 Attribute Value

2215

Spec 12 Attribute

Shield Type

Spec 12 Attribute Value

Aluminum Foil

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

-20 To 75

Spec 14 Attribute

Type

Spec 14 Attribute Value

Shielded Riser

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V

Spec 15 Attribute Value

300

Spec 2 Attribute

Color

Spec 2 Attribute Value

Grey

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

AWG

Spec 3 Attribute Value

18

Spec 4 Attribute

Conductor Type

Spec 4 Attribute Value

Stranded

Spec 5 Attribute

Impedance

Spec 5 Attribute UOM

Ohm

Spec 5 Attribute Value

41

Spec 6 Attribute

Jacket Material

Spec 6 Attribute Value

PVC

Spec 7 Attribute

Length

Spec 7 Attribute UOM

Ft

Spec 7 Attribute Value

1000

Spec 8 Attribute

Number of Conductors

Spec 8 Attribute Value

4

Spec 9 Attribute

Outside Diameter

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

0.18
