Genesis Cable

TSP182, 18/2 Plenum-CMP Shielded White

Category Plenum Shielded Multiconductor Cables

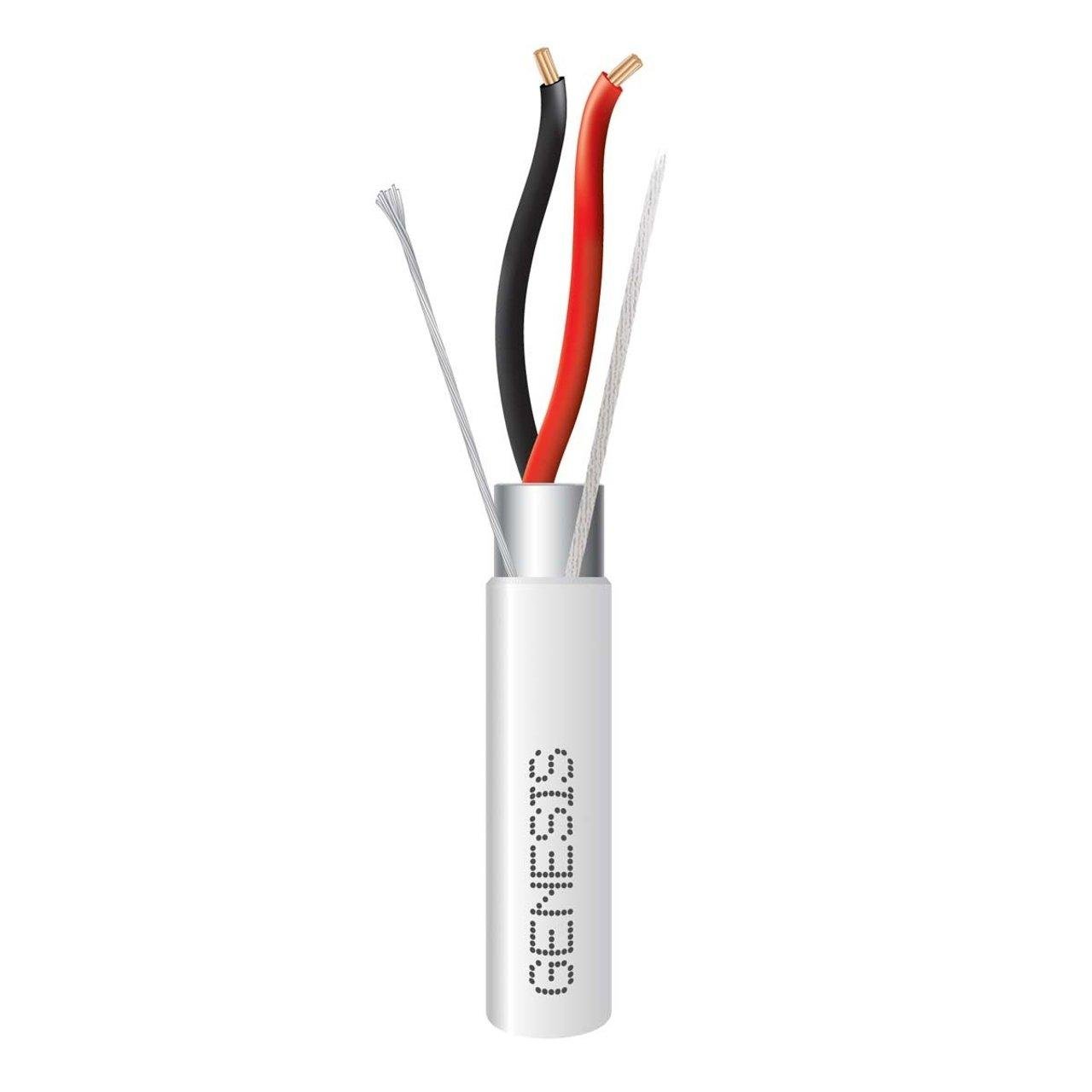

Picture of TSP182, 18/2 Plenum-CMP Shielded White Picture of TSP182, 18/2 Plenum-CMP Shielded White
Picture of TSP182, 18/2 Plenum-CMP Shielded White Picture of TSP182, 18/2 Plenum-CMP Shielded White
Genesis Cable

TSP182, 18/2 Plenum-CMP Shielded White

Item Code: 20070
Category Plenum Shielded Multiconductor Cables
Manufacturer Southwire Company
Manufacturer Ref TSP182
Minimum order quantity 1000

Document
Call for Availability
Add to Favorites
Compare

Description

Shielded Communication Cable; Type CMP/CL3P (UL), CMP/FT6 (CUL); Voltage Rating 300 V; Number of Conductors 2; Conductor Size 18 AWG Stranded; Conductor Material Bare Copper; Drain Wire Material Tinned Copper; Drain Wire Size 24 AWG; Color Code Black, Red; Insulation Material Low Smoke PVC; Jacket Material Low Smoke PVC; Jacket Color Beige; Shielding Type Aluminum Mylar; Outer Diameter 0.17 Inch; Length 1000 Ft; Temperature Rating -20 to 75 Deg C; Application Communication, Intercom/P.A. System, Nurse Call, Power Limited Circuit, Remote Control, Security System, Signaling, Sound/Audio; Approval UL 13, UL 444, CUL; ROHS Compliant; Applicable Standard NEC 725, NEC 760, NEC 800; Stranding 7/0.0152; Insulation Thickness 0.01 Inch; Jacket Thickness 0.014 Inch; Insulated Conductor Diameter 0.066 Inch; Packaging Type Reel

Specifications

Weight

18.4lb

Height

7.25mm

Width

11.75mm

Length

11.75mm

AD All Features

Cable Rating - Plenum, FT6

AD Application

For General Purpose and Security Systems

AD Brand (Description)

Genesis Cable

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

PREMISE CU PLENUM - MISC REEL 300V 2

AD Item Features 01

Cable Rating - Plenum, FT6

AD Item Features 02

Cable Listing - CL3P, FPLP, CMP, FT6

AD Item Features 03

Insulation Colors - Black, Red

AD Item Features 04

Shielding Type - Overall Foil

AD Item Features 05

Rip Cord - Yes

AD Item Features 06

59.3 pF / ft. Capacitance

AD Item Features 07

55% Velocity of Propagation

AD Manufacturer (Description)

Southwire Company

AD Package Height

7.2500

AD Package Height UOM

IN

AD Package Length

11.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

18.4000

AD Package Weight UOM

LB

AD Package Width

11.7500

AD Package Width UOM

IN

Brand

Genesis

Category

Plenum Shielded Multiconductor Cables

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

18

Spec 10 Attribute

Resistance

Spec 10 Attribute Value

6.66 Ohm/1000 ft at 20 deg C

Spec 11 Attribute

Series

Spec 11 Attribute Value

3214

Spec 12 Attribute

Strands

Spec 12 Attribute Value

19

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

-20 To 75

Spec 14 Attribute

Type

Spec 14 Attribute Value

Multipurpose

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V

Spec 15 Attribute Value

300

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Stranded

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

Plenum PVC

Spec 4 Attribute

Jacket Color

Spec 4 Attribute Value

Natural

Spec 5 Attribute

Jacket Material

Spec 5 Attribute Value

Plenum PVC

Spec 6 Attribute

Length

Spec 6 Attribute UOM

Ft

Spec 6 Attribute Value

1000

Spec 7 Attribute

Number of Conductors

Spec 7 Attribute Value

2

Spec 8 Attribute

Outside Diameter

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

0.156

Spec 9 Attribute

Packaging Type

Spec 9 Attribute Value

Reel
