Universal

B432IUNVEL-A010C - Fluorescent Electronic Ballast

Category Electronic Linear Fluorescent Ballasts

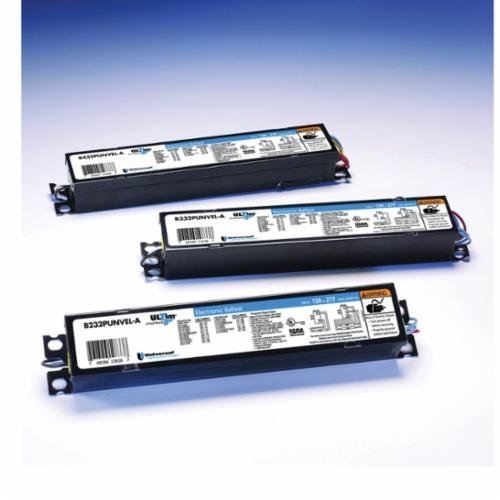

Picture of B432IUNVEL-A010C - Fluorescent Electronic Ballast Picture of B432IUNVEL-A010C - Fluorescent Electronic Ballast
Picture of B432IUNVEL-A010C - Fluorescent Electronic Ballast Picture of B432IUNVEL-A010C - Fluorescent Electronic Ballast
Picture of B432IUNVEL-A010C - Fluorescent Electronic Ballast Picture of B432IUNVEL-A010C - Fluorescent Electronic Ballast
Universal

B432IUNVEL-A010C - Fluorescent Electronic Ballast

Item Code: 323349
Category Electronic Linear Fluorescent Ballasts
Manufacturer Ref B432IUNVEL-A010C

Document
Call for Availability
Add to Favorites
Compare

Description

Fluorescent Electronic Ballast; Type High Frequency; Starting Type Instant; Lamp Type F17T8, F25T8, F28T8, F32T8, F32T8ES, F40T8; Lamp Style U; Number of Lamps 4; Lamp Wattage 25/30 W; Input Voltage 120/277 V; Input Current 0.2/0.22/0.26/0.27/0.28/0.29/0.31/0.32/0.34/0.35/0.44/0.5/0.57/0.62/0.65/0.67/0.7/0.75/0.8/0.81 Ampere; Input Power 52/53/58/60/68/69/73/75/76/78/80/84/85/90/91/94/96/97 W; Frequency Rating 50/60 Hz; Power Factor 0.94/0.95/0.98/0.99; Ballast Factor 0.77/0.78/0.79/0.82/0.86; Maximum THD 10 Percent; Wiring Parallel; Minimum Starting Temperature 0/60 Deg F; Size 9.5 Inch L x 1.7 Inch W x 1.18 Inch H; Approval ANSI C82.11/C62.41, UL (Canada and US), FCC; Packaging Type Carton

Specifications

Weight

1.7lb

AD All Features

Parallel lamp operation

AD Application

Linear EL Applications

AD Brand (Description)

Universal

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BALLAST FLUOR ELEK T8 32W 120 TO 277VAC

AD Item Features 01

Parallel lamp operation

AD Manufacturer (Description)

Universal Douglas

AD Package Quantity

1

Brand

Universal Ballast

Category

ELECTRONIC LINEAR FLUORESCENT BALLASTS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

0.34/0.8

Spec 10 Attribute

Power Factor

Spec 10 Attribute Value

>0.98/0.99

Spec 11 Attribute

Start Type

Spec 11 Attribute Value

Instant

Spec 12 Attribute

Temperature Range

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

105

Spec 13 Attribute

Total Harmonic Distortion

Spec 13 Attribute UOM

%

Spec 13 Attribute Value

<10

Spec 14 Attribute

Type

Spec 14 Attribute Value

High Efficiency

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120 To 277

Spec 16 Attribute

Wattage

Spec 16 Attribute UOM

W

Spec 16 Attribute Value

96/97

Spec 2 Attribute

Ballast Factor

Spec 2 Attribute Value

0.77

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

9.5 in L x 1.7 in W x 1.18 in H

Spec 4 Attribute

Dimmable

Spec 4 Attribute Value

No

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Lamp Wattage

Spec 7 Attribute UOM

W

Spec 7 Attribute Value

32

Spec 8 Attribute

Minimum Starting Temperature

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

-18

Spec 9 Attribute

Number of Lamps

Spec 9 Attribute Value

4
