WattStopper

DT305U - Wattstopper® Dual Technology Low Profile Ceiling Mount Occupancy Sensor 24V 360° 40 kHz BAA compliant

Category Lighting Occupancy Sensors

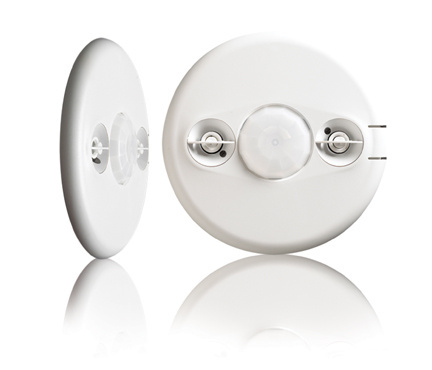

Picture of DT305U - Wattstopper® Dual Technology Low Profile Ceiling Mount Occupancy Sensor 24V 360° 40 kHz BAA compliant
WattStopper

DT305U - Wattstopper® Dual Technology Low Profile Ceiling Mount Occupancy Sensor 24V 360° 40 kHz BAA compliant

Item Code: 570866
Category Lighting Occupancy Sensors
Manufacturer Legrand
Manufacturer Ref DT-305

Catalog
Instruction Installation Manual
Line Drawing
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

The DT-300 Series Dual Technology Ceiling Sensors combine the benefits of passive infrared (PIR) and ultrasonic technologies to detect occupancy. Sensors have a flat, unobtrusive appearance and provide 360 degrees of coverage.

Specifications

Weight

0.58lb

Height

5mm

Width

4.75mm

Length

5mm

Amperage Rating

35 mA

Brand

Wattstopper

Category

LIGHTING OCCUPANCY SENSORS

Color

White

Connection Type

Flying Lead

Control Output

Automatic On/Automatic Off

Coverage

1000 sq-ft

Dimensions

4.5 in Dia x 1.02 in D

Lamp Type

Led

Material

Plastic

Mounting Type

Ceiling

Response Frequency

40 khz

Sensor Type

Passive Infrared/Ultrasonic

Series

DT Series

Temperature Rating

35 deg C

Time Delay

5 to 30 min

Type

Dual Technology Low Voltage

Viewing Angle

360 deg

Voltage Rating

24 V AC/DC
