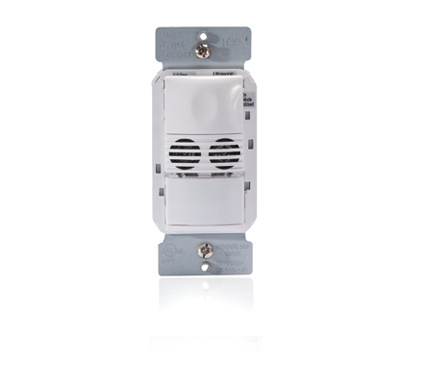

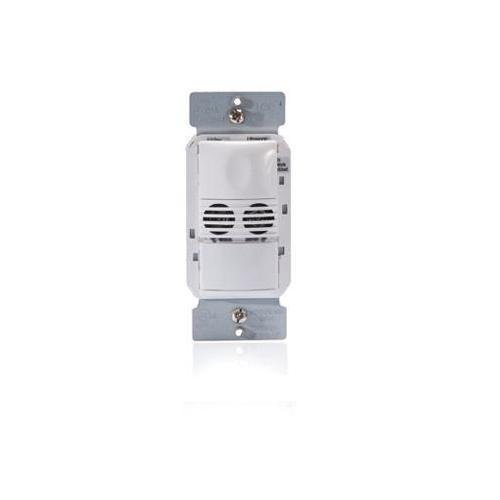

DW-100-W - Dual Technology Switch Occupancy Sensor, 120/277V White
Description
Specifications
0.4lb
5mm
3.25mm
2.5mm
Indoor, Commercial, Offices, Conference Rooms and Lunch/Break Rooms Applications
Wattstopper
USA
CN
00754182919116
SENSOR OCCUPANCY SW WALL 120/230/277VAC
Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 s at walk through mode, 5 s for 10 min with dip switch setting at test mode
High or low (dip switch) PIR adjustment and minimum to maximum (trimpot), OFF ultrasonic adjustment
0 to 800 W tungsten or ballast, 1/6 hp motor load limit for each relay at 120 VAC and 0 to 1200 W ballast load limit for each relay at 277 VAC
Complies with 2011 NEC requirements
Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
Zero crossing for long relay life
Vandal-resistant lens combines precise coverage with durability
Choice of manual on or auto-ON operation
Selectable walk through mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s
Test mode allows quick and easy adjustments
Selectable audible alert for impending shutoff
In automatic mode, sensor returns automatically to auto-ON after lights are turned OFF manually, ideal for presentations
Four occupancy logic options give users the ability to customize control to meet application needs
Optional light level sensing with simple setup
Service mode allows sensor to operate as a service switch in the unlikely event of a failure
Sensor coverage tested to NEMA guide publication WD 7-2000
Compatible with decorator wallplates
One relay and one on/OFF button
Magnetic or electronic ballast load type
Can turn lights off/on based on occupancy
Legrand
5.0000
IN
2.5000
IN
1
0.4000
LB
3.2500
IN
Wattstopper
LIGHTING OCCUPANCY SENSORS
Color
White
Response Frequency
HZ
50/60
Sensor Type
Passive Infrared/Ultrasonic
Series
DW Series
Temperature Rating
deg C
35
Time Delay
MIN
5 to 30
Type
Dual Technology Single Relay
Viewing Angle
deg
180
Voltage Rating
V AC
120/230/277
Connection Type
Flying Lead
Control Output
Automatic On/Off, Manual On/Off
Coverage
sq-ft
525
Dimensions
2.73 in L x 1.76 in W x 1.83 in H
Lamp Type
Fluorescent/Incandescent/LED
Material
Plastic
Mounting Type
Wall
Power Rating
0 to 1200 W, 1/6 hp
