6ATC2PAVBK - 6AT Prewired A/V Evolution™ Poke Thru Device, Surface Style Cover, Black
Description
Specifications
10lb
19.5mm
11mm
18mm
16.25mm
13820079
Commercial Office, Education, Healthcare, Hospitality, Entertainment, Retail, Kiosks, Meeting Rooms, Training Rooms, Classrooms, Commercial Buildings with Open Space Architecture, Commercial Kitchen, Wet/Damp Locations Applications
Wiremold
USA
US
RoHS
Specification Sheet
Instruction/Installation Manual
Owners/User Manual
Full Engineering Drawing
00786564088950
13820079
ASSEMBLY POKE-THRU 6IN 3 24CU-IN 7-1/4IN
Prewired assembly, Save on labor with a completely assembled, prewired poke-thru with every power receptacle already installed
Recessed devices, All power, communications and A/V devices are recessed below floor level, providing maximum protection and device longevity
Step-on-it installation, Quick and easy installation without the need for additional fasteners or a second installer

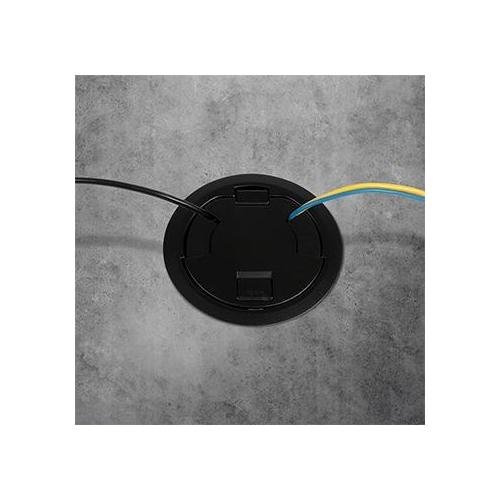

Unique cover design, The cover opens a full 180 deg with two unique spring-loaded slide egress doors to keep wires, connections and people safe
Multiple Finishes, Evolution Series Poke-Thru Devices are available in multiple finishes - (BK) black, (GY) gray, (NK) nickel, (BS) brass, (BZ) bronze, (AA) brushed aluminum, (SB) satin brass and (SN) satin nickel to seamlessly match your environment

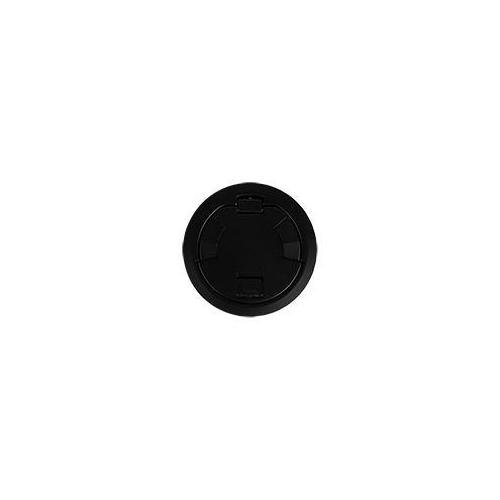

Surface style cover assemblies, A surface style cover is for mounting on top of the finished floor surface
Plug load control up to 30 ft, Tested with Pass and Seymour Wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
3 hr fire rating, Evolution Series Poke-Thru Devices use an intumescent material that maintains the fire rating of any floor for up to 3 hr, the longest of its type
The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
Wiremold® TopGuard™ 6ATC2PAVBK Evolution™ 6AT Pre-Wired Recessed Poke-Through Assembly With Surface Style Cover, 6 in Hole, 3 Gangs, 24 cu-in Capacity, Plastic/Steel ; 6ATC2PAVBK ; 13820079 ; 786564088950 ; 00786564088950 ; Poke-Through Assembled Units
Legrand
19.5000
IN
18.0000
IN
1
2578.8800
cu-in
10.0000
LB
11.0000
IN
6ATC2PAVBK ; 13820079 ; 786564088950 ; 78656408895 ; 00786564088950
https://www.youtube.com/watch?v=0YF0qQV6drE
Wiremold
FLOOR BOXES & ACCESSORIES
Capacity
cu-in
24
Material
Plastic/Steel
Number of Gangs
3
Series
Evolution™ 6AT
Suitable For Use With
Carpet, Tile, Wood, Terrazzo, Polished/Finished Concrete Floor
Type
Pre-Wired Recessed
Width
IN
7/1/2004
Color
Black
Cover Material
Die Cast Aluminum
Depth
IN
16-3/4
Device Type
Fire-Rated
Finish
Powder Coated
Hole Size
IN
6
Knockout Size
IN
3/4 to 2
Length
IN
7/1/2004
