Description
Specifications
1lb
0.75mm
6mm
9mm
9mm
9869752
Commercial and Office Applications
Wiremold
Grainger - 26Y159
USA
CN
RoHS
Warranty Information
Catalog
Specification Sheet
Instruction/Installation Manual
00786564054528
9869752
FLANGE TILE AND CARPET 5.94IN AL 9.045IN
Fully adjustable box, before and after concrete pour adjustability reduces installation costs
Two fabrications stamped steel and lower cost concrete-tight construction option for above grade applications
Economical alternatives when pour depths are limited
Flush activation assemblies for carpet and tile, aesthetically pleasing assemblies are interchangeable in both cast-iron and stamped steel box models
Triple service boxes, accommodates power, communication and/or audio video devices which reduces the need for multiple boxes
Brushed aluminum covers for power applications, 830ck series aluminum covers redesigned to accept threaded conduit when passing through power cables
Brass and brushed aluminum covers accept single locking power receptacles, new 828dlr series provides single flip lid cover
828comtc series cover kit in brass and brushed aluminum, allows communication devices to be recessed into 880S and 880CS series floor boxes
Partition support kit for 3-gang tile flanges, 838TAL-880 series flanges provide partition supports in tile applications for added strength and durability
TopGuard™ protection, all cover assemblies for the OmniBox floor box series have topguard protection, an integral design which keeps out water, dirt and debris from the power and communication compartments, 1-gang die-cast aluminum flange
Screw on mounting
Cast-iron watertight construction for on or below grade applications

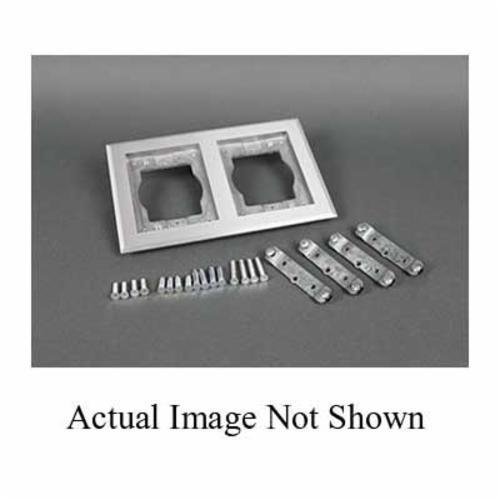

Wiremold® Omnibox™ 828TCAL 2-Gang Carpet and Tile Flange, 5.94 in L, Aluminum ; 828TCAL ; 9869752 ; 786564054528 ; 00786564054528 ; Floor Box Flanges
Legrand
0.7500
IN
9.0000
IN
1
40.5000
cu-in
1.0000
LB
6.0000
IN
828TCAL ; 9869752 ; 786564054528 ; 78656405452 ; 00786564054528
Wiremold
FLOOR BOXES & ACCESSORIES
Color
Black
Finish
Brushed
Length
IN
5.94
Material
Aluminum
Suitable For Use With
Omnibox™ Floor Box
Type
2-gang
Width
IN
9.045
