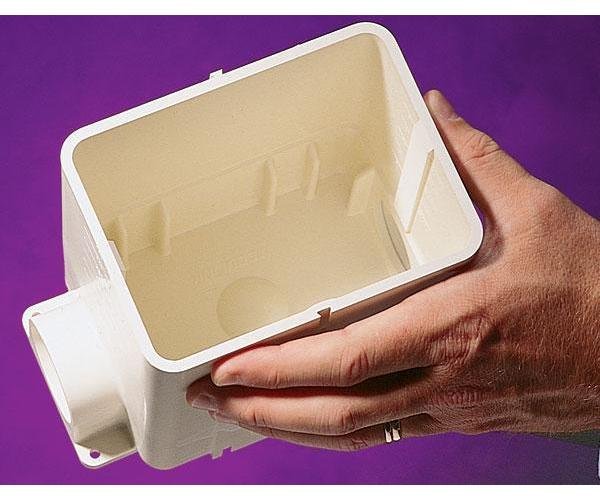

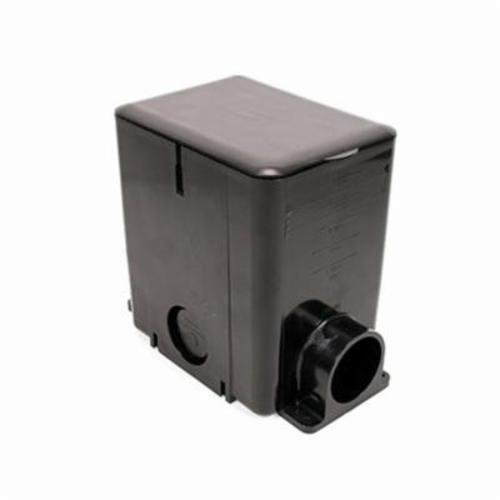

880MP - ModulinkTM 880MP Series Rectangular Plastic Floor Box
Description
Specifications
2lb
5.88mm
7mm
8mm
7.13mm
9896558
Commercial, Office, Retail Stores, Malls, Financial and Government Institutions Applications
Wiremold
USA
US
Warranty Information
Catalog
Specification Sheet
Instruction/Installation Manual
00786564524304
9896558
Reusable Mudcap, Insert Spacer, Conduit Plugs and Reducers
BOX FL 50 TO 100CU-IN 1 1 1-1/4IN RECT
TopGuard protection
Activation covers for the 880MP PVC box are TopGuard protected
These cover assemblies keep out water, dirt, and debris from the power and communication compartments
Eliminates the cost of a separate floor box and cover to accommodate communication service
Makes floor box depth calculations quick and easy
Provides the largest conduit feed in the industry
Meets customer requirements for greater communication cable capacity
Allows connection of cover flange without glue or mechanical fasteners
Allows direct reduction from 1 1/4 in 32mm conduit to 1 in 25mm, 3/4 in 19.1mm or 1/2 in 12.7mm conduit
Cubic inch markings on the interior of the box
No need to calculate cubic inch capacity for wire fill, saving installation time
Ratchet adjusting ring has built-in fiber storage
Provides bend radius control for fiber optic cables
Can feed multiple gangs from a single cable feed location
Modular design and gangability
One SKU to order boxes with the ability to configure boxes as needed on the job site
Datacom connectivity options
Internal spacer
Protects box from deformation of the sidewalls when high temperature additives are used in the concrete pour
Redesigned mudcap
Wiremold® Modulink 880MP Modulink 880MP Fully Adjustable Multiple Service Non-Metallic Floor Box, 50 to 100 cu-in Capacity, 1 Gangs, 1 Knockouts, 6 in L x 4-1/8 in W x 5-1/2 in H ; 880MP ; 9896558 ; 786564524304 ; 00786564524304 ; Floor Boxes
Legrand
5.8800
IN
8.0000
IN
1
369.9400
cu-in
2.0000
LB
7.0000
IN
880MP ; 9896558 ; 786564524304 ; 78656452430 ; 00786564524304
Wiremold
FLOOR BOXES & ACCESSORIES
Capacity
cu-in
50 to 100
Dimensions
6 in L x 4-1/8 in W x 5-1/2 in H
Knockout Size
IN
1/1/2004
Mounting Type
Concrete
Number of Gangs
1
Number of Knockouts
1
Series
Modulink 880MP
Shape
Rectangle
Type
Fully Adjustable Multiple Service Non-Metallic
