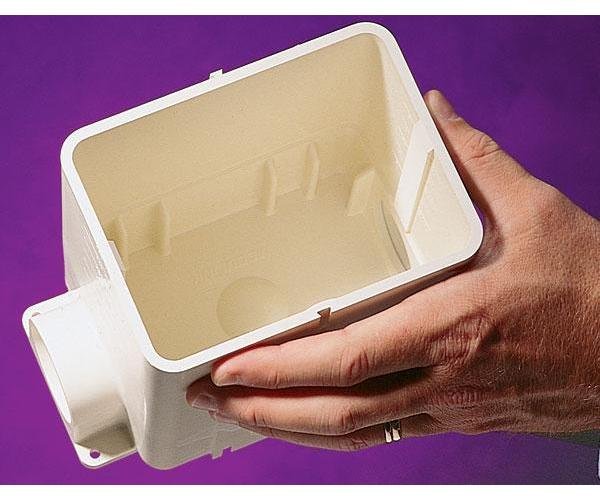

880MP2 - ModulinkTM 880MP Series Rectangular Plastic Floor Box with 2 Inch Conduit Opening
Description
Specifications
3lb
7mm
9mm
10mm
8.25mm
12059072
Open Space Concrete Floors, Commercial Offices, Retail Stores, Malls, Financial and Government Institutions Applications
Wiremold
USA
US
Warranty Information
Catalog
Specification Sheet
Instruction/Installation Manual
00786776180824
12059072
Reusable Mudcap, Insert Spacer, Conduit Plugs and Reducers
BOX FL CONCRETE 100CU-IN 1 TO 3 12 RECT
2 in 51mm conduit openings
Provides the largest conduit feed in the industry
Meets customer requirements for greater communication cable capacity
Allows direct reduction from 2 in to 1 1/2 in or 1 1/4 in 51mm to 38mm or 32mm. Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers
Ratchet adjusting ring
Allows connection of cover flange without glue or mechanical fasteners
Modular design and gangability
One SKU to order boxes, with the ability to configure boxes as needed on the job site
Pass-through capability
Can feed multiple gangs from a single cable feed location
Depth markings on exterior of the box
Makes floor box depth calculations quick and easy
Wiremold 880MP2 Modulink 880MP Multi-Service Non-Metallic Floor Box, Concrete, 100 cu-in Capacity, 1 to 3 Gangs, 12 Knockouts, 8-1/4 in L x 4-1/8 in W x 6-3/16 in H ; 880MP2 ; 12059072 ; 786776180824 ; 00786776180824 ; Floor Boxes
Legrand
7.0000
IN
10.0000
IN
1
665.0000
cu-in
3.0000
LB
9.0000
IN
880MP2 ; 12059072 ; 786776180824 ; 78677618082 ; 00786776180824
https://www.youtube.com/watch?v=Qvp6BF0FErE
Wiremold
FLOOR BOXES & ACCESSORIES
Capacity
cu-in
100
Type
Multi-Service Non-Metallic
Dimensions
8-1/4 in L x 4-1/8 in W x 6-3/16 in H
Knockout Size
IN
1/2 To 2
Material
Concrete
Mounting Type
Concrete/Threaded
Number of Gangs
1 to 3
Number of Knockouts
12
Series
Modulink 880MP
Shape
Rectangle
