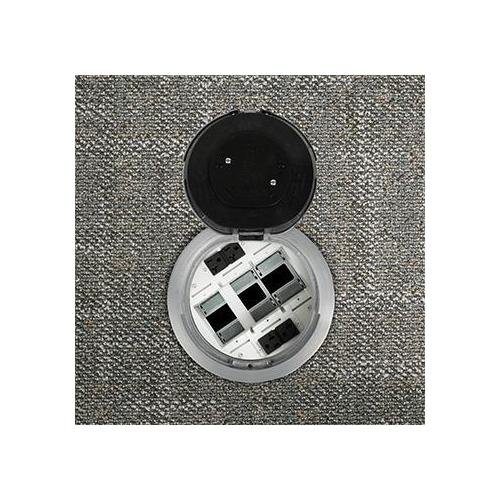

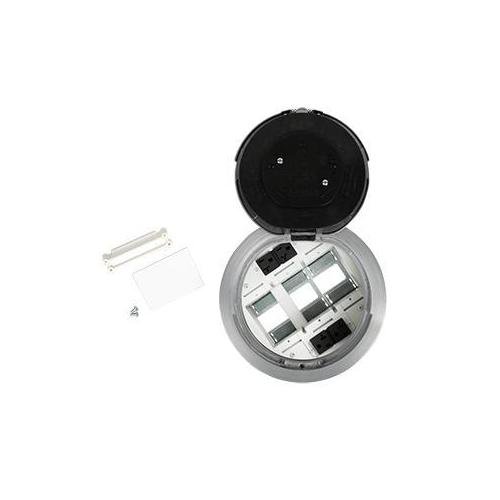

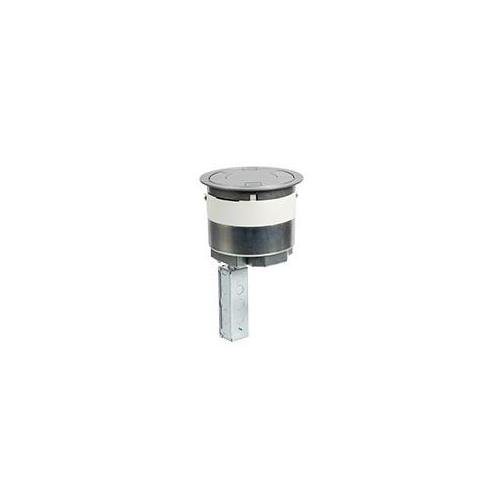

8ATC2PAA - 8IN PREWIRED SURF STYLE ASSEMBLY AA BRUSHED ALUMINUM
Description
Specifications
12lb
19.5mm
11mm
18mm
Commercial Office, Education, Healthcare, Hospitality, Entertainment, Retail, Kiosks, Meeting Rooms, Training Rooms, Classrooms, Commercial Buildings with Open Space Architecture, Commercial Kitchen, Wet/Damp Locations Applications
Wiremold
USA
US
ASSEMBLY POKE-THRU 8IN 5 PLSTC/STL 3/4IN
Pre-wired assembly save on labor with a completely assembled, Pre-wired poke-thru with every power receptacle already installed
Recessed devices all power, communications and AV devices are recessed below floor level, providing maximum protection and device longevity
Step-on-it installation - quick and easy installation without the need for additional fasteners or a second installer

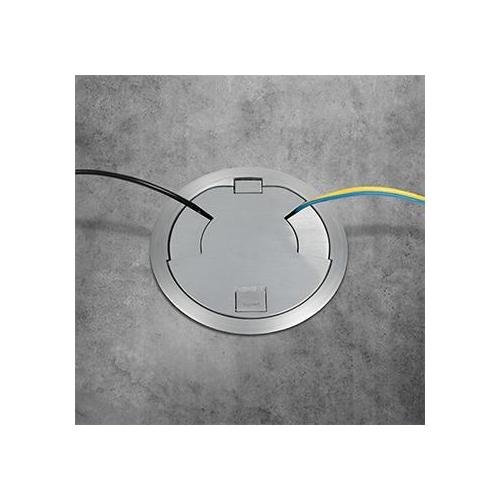

The cover opens a full 180 deg with two unique spring-loaded slide egress doors to keep wires, connections and people safe
A surface style cover is for mounting on top of the finished floor surface
Open system for expanded compatibility - accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron® and more
Includes 3-gang opening designed to fit A/V devices, including wall plate style transmitters, like the Crestron DM/TX series, without any additional parts
Plug load control up to 30 ft - tested with Pass & Seymour® wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
Evolution™ series poke-thru devices use an intumescent material that maintains the fire rating of any floor for up to 2 hr
The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio
Legrand
19.5000
IN
18.0000
IN
1
2578.8800
cu-in
12.0000
LB
11.0000
IN
https://www.youtube.com/watch?v=0YF0qQV6drE
Wiremold
FLOOR BOXES & ACCESSORIES
Color
Brushed Aluminum
Number of Gangs
5
Series
Evolution™ 8AT
Suitable For Use With
Carpet, Tile, Wood, Terrazzo, Polished/Finished Concrete Floor
Type
Pre-Wired Recessed
Width
IN
9/1/2004
Cover Material
Die Cast Aluminum
Depth
IN
16-3/4
Device Type
Fire-Rated
Finish
Powder Coated
Hole Size
IN
8
Knockout Size
IN
4-Mar
Length
IN
9/1/2004
Material
Plastic/Steel
