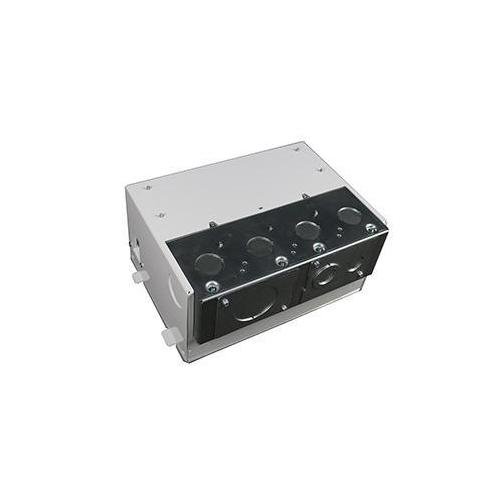

EFB45S - Evolution™ Series Four/Five Gang Floor Box
Description
Specifications
14lb
11mm
11mm
14mm
13mm
13825248
For installations where services are constantly evolving, such as commercial offices, conference rooms, stages, and entertainment venues, open space concrete, raised, wood floors applications
Wiremold
USA
MX
Catalog
Specification Sheet
Instruction/Installation Manual
Owners/User Manual
00786564086253
13825248
Protective/Disposable Cover, (1) Removable Module, (2) Toggle Clamps, (2) Cable Management Guides, (2) Leveling Support Legs, Trade Size Knockouts ranging in Size from 3/4 to 2 in Trade Size
BOX FL 4 TO 5 4/5 3/4 TO 2IN CONCRETE
Evolution Series Floor Boxes are designed to work in concrete, raised and wood floor applications and are fully adjustable both pre- and post-concrete pour
In addition to having removable dividers and a tunnel feature that allows all compartments to be connected
The modules are removable through the top or back of the floor box, allowing for easier installations and facilitating moves, adds, and changes without having to disconnect services, saving time and money
Durable 180 deg articulating hinge
Hinge design enables covers to open a full 180 deg and lie flat on the floor surface with the durability to support a large cover
Provides easy access to all interior modules and activations while reducing tripping hazards
Cable egress doors lock in position when open, and automatically closes around wires to protect cabling and reduce trip hazards
Evolution Series Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die-cast aluminum to provide strength and style
Fully finished interior removes the unfinished industrial look while increasing visibility, making it easier to see where to plug in devices
A single box can be specified for multiple floor types without having to order additional components or accessories
If used in concrete, concrete leveling legs need to be purchased separately for all non-OG boxes
Decorative powder coat colors (black, brass, bronze, gray, nickel, and aluminum) will complement any room decor
Evolution Series Floor Boxes have been developed specifically with the A/V industry in mind
3 1/2 in - 3 7/8 in 89mm x 98mm of wiring capacity behind each device plate, these boxes will accept devices from leading A/V manufacturers including Extron Electronics and Crestron
Wiremold® EFB45S Floor Box, Steel, 123 cu-in Capacity, 4/5 Gangs, 4 to 5 Outlets, 5-15/16 in L x 9-3/16 in W x 12-1/16 in H ; EFB45S ; 13825248 ; 786564086253 ; 00786564086253 ; Floor Boxes
Legrand
11.0000
IN
14.0000
IN
1
1784.7500
cu-in
14.0000
LB
11.0000
IN
EFB45S ; 13825248 ; 786564086253 ; 78656408625 ; 00786564086253
https://www.youtube.com/watch?v=WbbNvBc39DA
Wiremold
FLOOR BOXES & ACCESSORIES
Capacity
cu-in
123
Color
White
Dimensions
5-15/16 in L x 9-3/16 in W x 12-1/16 in H
Knockout Size
IN
3/4 to 2
Material
Steel
Mounting Type
Concrete
Number of Gangs
5-Apr
Number of Outlets
4 to 5
Series
Evolution™
