Description
Specifications
0.67lb
1.5mm
2mm
12mm
1.5mm
8740705
Commercial, Office and Residential Applications
Wiremold
Grainger - 3YY96
USA
US
RoHS
Warranty Information
Catalog
Instruction/Installation Manual
Owners/User Manual
00786776080261
8740705

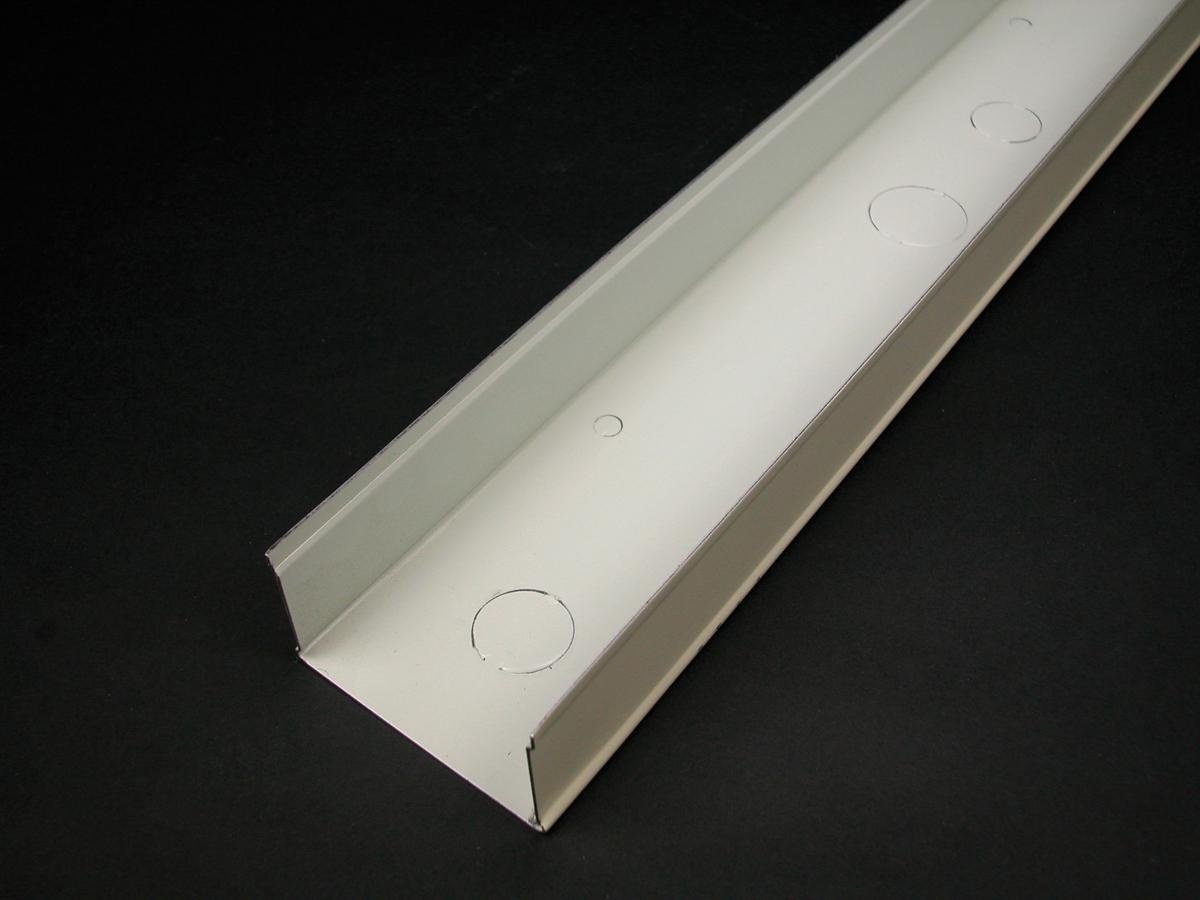

BASE RACEWAY 10FT 2-3/4IN 1-15/32IN STL
Mounts easily on walls, modular furniture, under raised floors or over ceiling, speeds installation
Base sections have predrilled 1/2 and 3/4 in CRFB size entrance knockouts and 9/32 in (7.1 mm) Dia mounting screw knockouts on approximately 9-3/8 in centers
Removable cover provides access to wiring
Entrance knockouts spaced at regular intervals along length of base allows power wiring, communication or A/V cables to be brought in at a convenient point
Provides flexibility to bring wiring to points of use
Accommodates a variety of receptacles, 3-pole circuit breaker housings and other protective devices provides flexibility for sophisticated wiring systems
Complete line of fittings provides a complete wiring solution and allows for interconnection between raceway systems
Electrical device identification for pre-wired raceway
Wiremold® G3000B Raceway Base, 10 ft L x 2-3/4 in W x 1-15/32 in H, Steel, Gray ; G3000B ; 8740705 ; 786776080261 ; 00786776080261 ; Raceway Bases
Legrand
1.5000
IN
12.0000
IN
1
49.5000
cu-in
0.6700
LB
2.0000
IN
G3000B ; 8740705 ; 786776080261 ; 78677608026 ; 00786776080261
Wiremold
METALLIC RACEWAY & ACCESSORIES
Color
Gray
Height
IN
1/15/2032
Length
Ft
10
Material
Steel
Mounting Type
Wall
Series
3000 Series
Thickness
IN
0.04
Voltage Rating
V AC
600
Width
IN
2/3/2004
