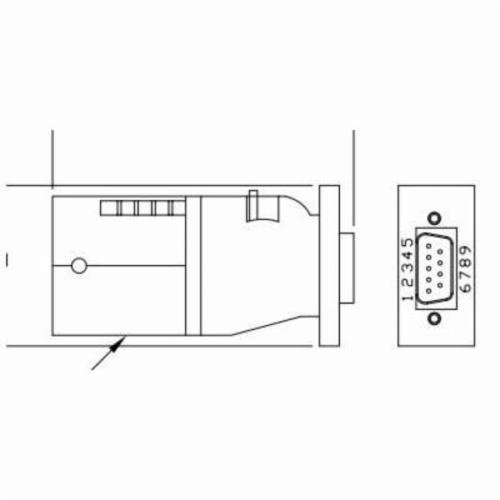

1201035001 - PROFIBUS Attachable D-Sub Connector with Diagnostics LEDs and Programming Port, Straight
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.2lb
AD All Features
IP67 rated, 4 A current
AD Brand (Description)
Woodhead
AD Country
USA
AD Invoice Description
CONNECTOR D-SUB DIE CAST ZINC 30VAC/VDC
AD Item Features 01
IP67 rated, 4 A current
AD Item Features 02
Cable connection using IDC technology, diagnostic LED, termination switch
AD Item Features 03
IP20 protection for D-sub
AD Manufacturer (Description)
MOLEX
AD Package Quantity
1
AD Package Weight
0.2000
AD Package Weight UOM
LB
Brand
MOLEX
Category
FIBER-OPTIC CONNECTORS
Spec 1 Attribute
Dimensions
Spec 1 Attribute Value
2.52 in L x 1.34 in W
Spec 2 Attribute
Housing Material
Spec 2 Attribute Value
Die Cast Zinc
Spec 3 Attribute
Series
Spec 3 Attribute Value
120103
Spec 4 Attribute
Temperature Rating
Spec 4 Attribute UOM
deg C
Spec 4 Attribute Value
-20 To 80
Spec 5 Attribute
Termination Type
Spec 5 Attribute Value
Switch
Spec 6 Attribute
Type
Spec 6 Attribute Value
Field Attachable
Spec 7 Attribute
Voltage Rating
Spec 7 Attribute UOM
V AC/DC
Spec 7 Attribute Value
30
